CAT ET Software

Caterpillar Electronic Technician (Cat ET Software) is diagnostic software used by Caterpillar dealers.  It’s required to communicate, diagnose and service electronically controlled Caterpillar engines and machines. When connected to an ECM, a technician has the ability to diagnose existing and potential problems, configure the product, and obtain data for analysis.  If you’re working on Caterpillar engines, this is diagnostic software you are going to be using.  Caterpillar Electronic Technician has all of the tools and capabilities you’ll need to diagnose and repair your CAT engines.

CAT ET Software

CAT ET Features:
  • Displays parameter status
  •  Displays active diagnostics
  •  Clear and view logged diagnostics
  •  Performs diagnostic tests
  •  Print reports and diagnostic results
  •  Perform calibrations
  •  Displays current totals information, i.e. fuel consumption, operating hours, etc.
  •  Integration to help files
  •  Creates engine warranty reports

Cat ET can also be used to perform the following functions:

  • Diagnostic Tests
  • Sensor Calibrations
  • Flash Programming (dealer only)
  • Trim Files (dealer only)
  • Parameter Programming (as allowed by Cat)
  • Copy Configuration Function for ECM Replacement
  • Change ECM Configurations (dealer only)
  • Data Logging
  • Graphs (real time)
  • Snapshot Recorder
  • Print Reports

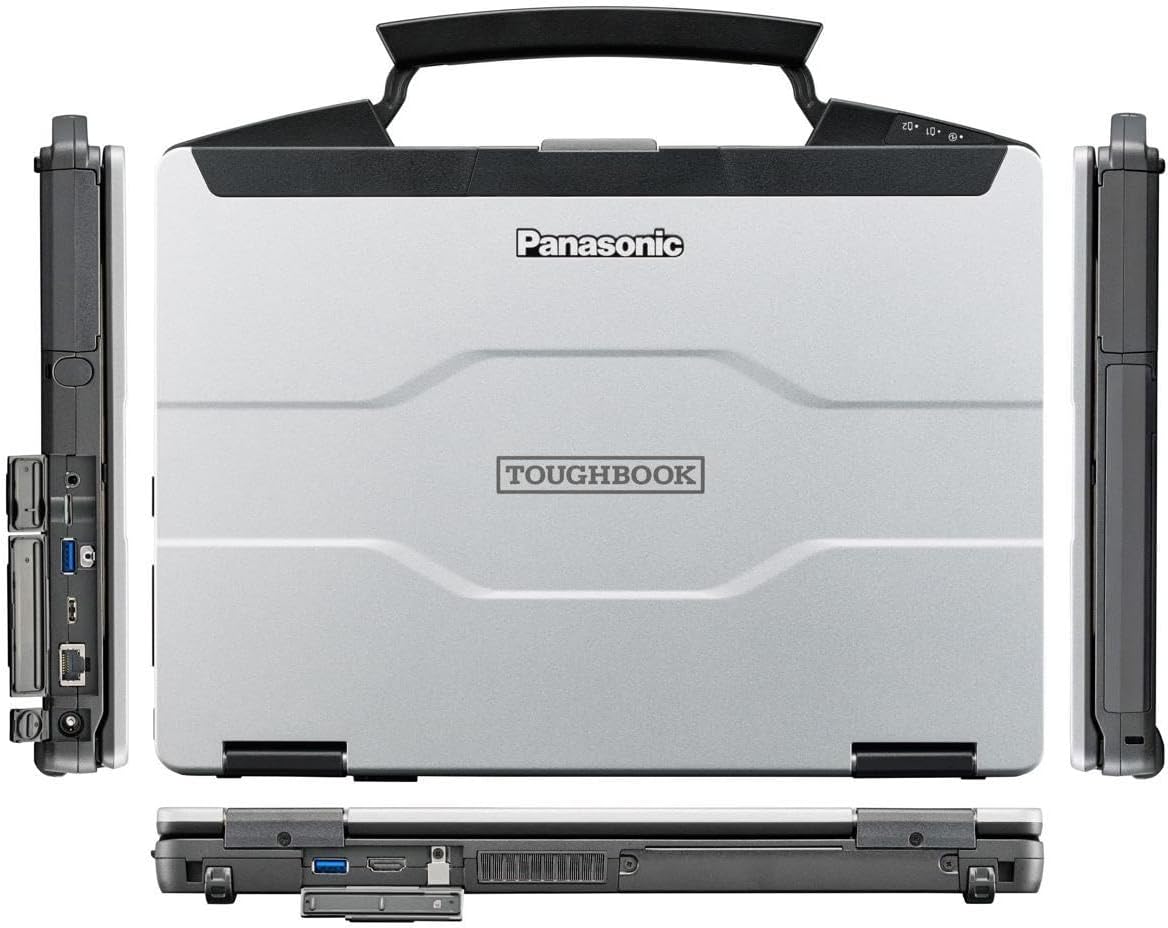

Recommended Computer Specs:

  • PC containing a 2.0 GHz dual-core processor
  • 3GB RAM
  • 3GB of available hard disk drive
  • DVD-ROM drive
  • 15.4 inch XGA Screen (1280×1024 compatible)
  • Microsoft Windows™ 7 Professional, Windows 8 Professional and Windows 10. Note: Windows 8 RT and the Windows Phone are not supported due to the ARM processors.  The Microsoft Surface Pro is supported.
  • RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
  • USB 1.1, 2.0 or 3.0 port (for use with Comm Adapter 3)
  • Ethernet RJ45 connector
  • Built in mouse, pointing device, or touch screen
  • For security purposes, Microsoft Browsers version 11 or newer or Microsoft Edge is recommended. Note: The most recent version of Microsoft browsers may not be validated to work with the service tool.
  • Wi-Fi (for the Wireless Comm Adapter 3)
Note:

ECM reprogramming (ie. HP changes, ECM flash, etc.), EGR & certain particulate filter code clearing can only be performed by a Caterpillar dealer.

Includes a 12 month subscription. Subscription requires annual renewal.
