Wabco Toolbox Plus

Wabco Toolbox Plus

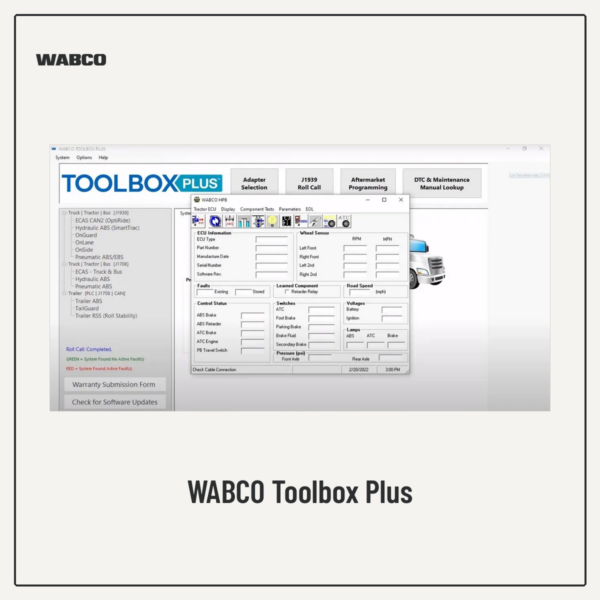

WABCO TOOLBOX PLUS provides an enhanced user experience to expedite vehicle and trailer diagnosis and minimize downtime. The software features a brand new user interface, support for WABCO’s current and latest product releases, automatic identification of WABCO systems on the vehicle, and pre-populated warranty forms for email to the WABCO Customer Care Center.

In addition to the newest features provided by WABCO TOOLBOX PLUS mentioned above, the advanced diagnostic software provides the same great features users have come to expect:

  • Displays both static and dynamic information from the system under test as well as both active and stored system faults
  • Activates components to verify system integrity and correct component operation and installation wiring
  • Provides access to repair documents, maintenance manuals and installation instructions”
  • Provides reverse Diagnostic Trouble Code (DTC) lookup
  • Enables Aftermarket Programming for most pneumatic and hydraulic ABS ECUs
  • Includes J1939 Bus Monitor for 500k Baud

Wabco Toolbox Plus

Product Support

Tractor:

  • SmartTrac® Stability Control Systems [Pneumatic ABS (mBSP, E8, E and D ECUs)
  • Electronic Braking System (EBS)]
  • OnGuard® Collision Mitigation System
  • OnLane® and OnLaneALERT® Lane Departure Warning
  • OnSide® Blind Spot Detection
  • OptiRide® Electronically Controlled Air Suspension (ECAS), ECAS for Tractor (12V)

Trailer:

  • ABS (iABS™, Enhanced Easy-Stop™ and Easy-Stop™)
  • Roll Stability Support (RSS)
  • TailGUARD™ Reversing Collision Avoidance System

Truck (Medium Duty), Bus and Motor Home Chassis:

  • SmartTrac® Stability Control Systems (Hydraulic ABS, HABS-E version and Hydraulic Power Brake), ECAS for Buses (24V)

Wabco Toolbox Plus

Aftermarket Reprogramming:

TOOLBOX PLUS’s Aftermarket Programming application enables quicker configuration of replacement Electronic Control Units (ECUs) for WABCO’s tractor/truck Anti-Lock Braking Systems (ABS) and the WABCO OnLaneALERT® Lane Departure Warning camera. WABCO’s programmable ECUs are applicable for a wide range of vehicles and help fleets to reduce downtime and costs through greater affordability and minimized unit inventory requirements.  WABCO also provides an optional Bench Programming Unit, enabling users to program ECUs on the bench versus directly on the vehicle.
