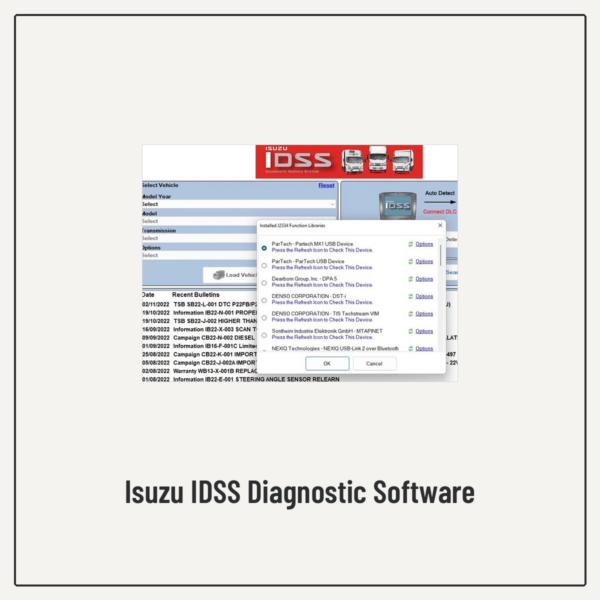

Isuzu IDSS Diagnostic Software

We’re the longest standing supplier of factory Isuzu IDSS software and offer the lowest price on the internet!

Includes:

• Isuzu IDSS Diagnostic Software (Includes 6 months of software updates)

Isuzu IDSS Model Coverage:

• NPR (gas & diesel)*
• NQR /NRR*
• FSR / FTR / FVR*
• 4HE-1*
• 4HK-1 Duramax engine*
• 4JJ-1
• 6HK-1 Duramax engine*

* Isuzu IDSS also covers GMC & Chevrolet equivalent trucks

Isuzu IDSS Diagnoses these systems:

• ECM (engine control module)
• TCM (transmission control module)
• ABS (anti-lock brake system)
• BCM (body control module)

Isuzu IDSS Diagnostic Software

Isuzu IDSS Diagnostic Software

Isuzu IDSS Allows technicians to:

• Reset injector codes into the ECM when injectors are replaced (2008+)
• Reprogram ECM units (With IDSS all ECM files are loaded onto your computer)
• Adjust idle speed (6HK engine only)
• Control emergency engine shutdown due to:
  • Engine temperature
  • Oil pressure
  • Oil level
  • Coolant level
  • Engine overspeed
  • High exhaust temperature
  • Overspeed
  • High EGR temperature
• PTO set-up control **Isuzu IDSS
• Adjust vehicle limit
• Exhaust brake mode adjust to:
  • Manual
  • Coast
  • Latch position
  • Cruise control options
    • Lock-out (driver cannot engage)
    • Minimum speed
    • Maximum speed
    • Relaxed cruise control (allows speed to vary by 5 mph to minimize transmission wear)
  • Engage/disengage engine oil change lamp
  • PTO set-up control **
    • Stationary operation
    • Mobile operation
    • Remote PTO operation including speed adjustment
    • Allow DPF regeneration while using PTO
• View fault codes & assist links to wire diagrams & fault code solving procedures
• View Service Manuals
• View Wire Diagrams
• View Technical Service Bulletins
• Diesel Particulate Filter (DPF) Regeneration
• Allows for 24/7 download of latest Isuzu Truck updates on ECM updates, latest TSBs, file changes and more (with active subscription)

**2005 & newer Isuzu truck wire harnesses are built with PTO installation in mind.  All necessary plugs are located throughout the vehicle and are pre-connected to the ECM.  This facilitates the installation & use of a PTO.  The IDSS allows the technician to make PTO settings through the ECM.  This allows for a clean, professional installation.

Isuzu IDSS Diagnostic Software

Isuzu IDSS 4H and 6H Engine ECM Parameters

PTO Operation

• Stationary Preset PTO: One of three power take off modes used to allow up to four preset engine speeds in Park or Neutral.
• Stationary Variable PTO: One of three power take off modes used to allow up to four preset engine speeds in Park or Neutral.
• Mobile Variable PTO: One of three power take off modes used to allow variable engine speeds in and out of gear and with or without vehicle speed.
• High Idle Switch Option PTO (6H Only): This option allows raising the engine speed designated to aid in faster engine warm-up using a dash mounted switch.
• High Idle Switch Engine Speed  (6H Only): The preset engine speed for the High Idle Switch Option PTO.
• PTO Standby Speed: The engine speed used to notify the driver just after the PTO main switch has been turned ON. This speed can also be used to operate the PTO.
• PTO Max Engine Speed: Maximum allows engine speed in PTO mode regardless of accelerator pedal input.
• PTO Max Vehicle Speed: Maximum vehicle speed allowed in PTO mode.
• PTO Engage Relay: This feature allows the control of a relay in PTO mode when certain adjustable parameters have been met.
• PTO Max Engage Speed: Maximum engine speed for PTO hydraulic pump protection before the PTO Engage Relay will be activated.
• PTO Feedback: An input used for PTO hydraulic pump protection which ensures the PTO Engage Relay has energized before allowing the engine speed to be raised.
• PTO Engine Shutdown with Circuit Input: A safety feature which allows immediate engine shutdown – when the engine shutdown circuit is grounded in PTO mode.
• PTO Shutdown with Circuit Input: A safety feature which allows the engine to return to base idle speed when a circuit is grounded in PTO mode.
• PTO Shutdown Vehicle Speed: A safety feature which turns OFF the PTO Engage Relay above the programmed vehicle speed.
• PTO Engine Shutdown Time Delay: The time between when the Engine Shutdown input is detected and the engine actually shuts down.
• Disable Cab Controls: An option to disable the cruise control switches and accelerator pedal inside the cab in PTO mode.
• Disable Cab Controls with Circuit Input: An option to disable the cruise control switches and accelerator pedal inside the cab in PTO mode with the disable cab control circuit switched to ground.
• Diesel Particulate Filter (DPF) Regeneration in PTO: Allows Diesel Particulate Filter regeneration in Mobile Variable PTO mode.
• PTO Brake/Clutch Override: Allows continuous PTO engine speed control with the brake pedal applied, which normally would cancel PTO.
• Park Brake PTO Enable: An option to need the park brake enabled in order to raise the engine speed beyond the PTO Standby Speed.
• PTO Set Speed: The first preset engine speed in Stationary Preset PTO mode when the cruise control set/resume switch is depressed.
• PTO Resume Speed: The second preset engine speed in Stationary Preset PTO mode when the cruise control resume/accel switch is depressed.
• PTO Increase RPM Rate: The engine speed increase amount in Stationary or Mobile Variable PTO mode when the cruise resume/accel switch is depressed.
• PTO Reduce RPM Rate: The engine speed decrease amount in Stationary or Mobile Variable PTO mode when the cruise set/coast switch is depressed.
• PTO Accel RPM Rate: The rate at which the engine speed changes when using the cruise control or remote switches.
• Remote PTO Set/Resume Switches: This option enables the use of the Remote PTO Set/Resume Switches for both Variable PTO modes.
• Remote PTO Set Speed AB Switches: This option enables the use of the Remote PTO Set AB Switches for the Stationary Preset Mode.
• Remote PTO Set Speed A: This is the preset engine speed in Stationary Preset PTO mode when the remote Set Speed A switch is depressed.
• Remote PTO Set Speed B: This is the preset engine speed in Stationary Preset PTO mode when the remote Set Speed B switch is depressed.
• Remote PTO Throttle: This option enables the use of a throttle type potentiometer to vary engine speed in all PTO modes.
• Remote PTO Throttle 0%: This indicates the lower voltage limit for the throttle potentiometer at the minimum or 0% throttle position.
• Remote PTO Throttle 100%: This indicates the upper voltage limit for the throttle potentiometer at the maximum or 100% throttle position.
• Remote PTO Throttle Max Engine Speed: Maximum allowed engine speed when using Remote PTO throttle regardless of accelerator pedal input.
• PTO Operation Hours Reset (6H Only): The function resets the logged engine running hours while in PTO mode.

Cruise Control

• Cruise Control Disable: This option locks out the use of cruise control
• Minimum Cruise Control: Minimum allowed cruise control set speed.
• Maximum Cruise Control: Maximum allowed cruise control set speed.
• Relaxed Cruise Control: Allows the cruise control system to deviate up to 5 mph while in cruise control to reduce transmission gear hunting.

Exhaust Brake

• Exhaust Brake Mode: This option allows three modes during Exhaust Brake activation: Manual, Coast, and Latch.
• Exhaust Brake Latch Mode Engine Speed: The minimum engine speed allowed for exhaust brake activation in the exhaust brake latch mode.
• Exhaust Brake in Cruise: Allows the engine controller to utilize the exhaust brake in cruise control to slow the vehicle down.
• Exhaust Brake in Cruise ON Speed: The minimum vehicle speed threshold in which the exhaust brake in cruise is allowed to operate.
• Exhaust Brake in Cruise OFF Speed: The maximum vehicle speed threshold in which the exhaust brake in cruise is allowed to operate.
• Exhaust Brake Time Delay: The time between when the engine controller would be commanding the exhaust brake ON to when the exhaust brake is actually turned ON.

Vehicle Speed Limit

• Vehicle Speed Limit: Maximum allowable vehicle speed limit.
• Vehicle Speed Output Pulses per Mile: An option to allow the engine controller to transit a square wave signal which represents the actual vehicle speed.
• Tachometer Output Pulses per Engine Revolution: An option to allow the engine controller to transmit a square wave signal which represents the actual engine speed.

Engine Idle Speed

• Base Idle Speed (6H only): This option allows the base idle speed to be raised within a certain range.
• High Idle Speed for Cold (6H only): This option allows the engine speed to be raised for faster.
• Coolant Conditions: Engine coolant warm-up when the engine coolant is below a certain threshold.

Engine Oil Life

• Engine Oil Life Enable (6H only): This option allows the enable or disable of the engine oil change lamp algorithm.
• Engine Oil Capacity (6H only): The option allows the accommodation of additional oil capacity due to the Luber-Finer option.

Engine Shutdown

• Controlled Engine Shutdown: Engine shutdown available due to high engine temperature, low coolant level, or abnormal oil pressure (either high or low oil pressure)
• Engine Protection Counter – Engine Overspeed: Tied to Controlled Engine Shutdown
• Engine Protection Counter – High Exhaust Temp: Tied to Controlled Engine Shutdown
• Engine Protection Counter – High EGR Temp: Tied to Controlled Engine Shutdown
• Engine Shutdown Counter – Low Oil Level: Tied to Controlled Engine Shutdown
• Engine Shutdown Counter – Low Coolant Level: Tied to Controlled Engine Shutdown
• Engine Shutdown Odometer – Low Coolant Level: Tied to Controlled Engine Shutdown
• Engine Shutdown Counter – High Coolant Temp: Tied to Controlled Engine Shutdown
• Engine Shutdown Odometer – High Coolant Temp: Tied to Controlled Engine Shutdown

Gear Down Protection (6H with Manual Transmission only)

• Gear Down Protection Engine Speed Limit Enable: Forces earlier shifting to create better fuel economy
• Gear Down Protection Engine Speed Limit: Forces earlier shifting to create better fuel economy
• Gear Down Protection Turn ON Speed: Forces earlier shifting to create better fuel economy
• Low Gear Engine Speed Limit Enable: Forces earlier shifting to create better fuel economy
• Low Gear Turn OFF Speed: Forces earlier shifting to create better fuel economy
• Intermediate Engine Speed Limit Enable: Forces earlier shifting to create better fuel economy
• Intermediate Gear Turn OFF Speed: Forces earlier shifting to create better fuel economy

Isuzu IDSS Diagnostic Software
